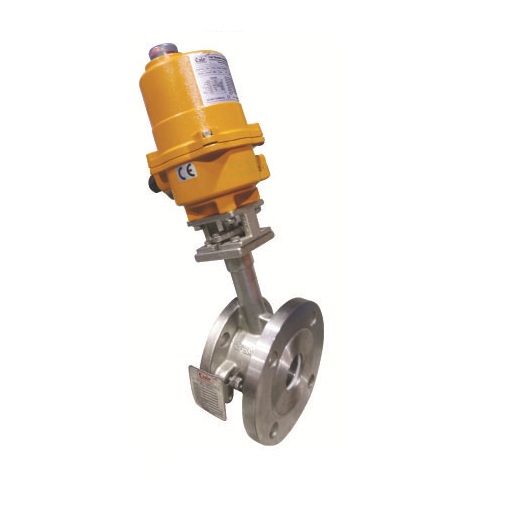

Electrical Actuator Operated Flush Bottom Reduce Bore Ball Valves



Owing to our speedy distribution network, we are capable to render quickly and hassle free deliveries. Ours is a reckoned name in this domain and actively involved in offering quality-centralized product range that is designed and developed using the qualitative raw material.



Electrical Actuator Details:

  • Manufacturer - Cair Euromatic Automation Pvt. Ltd.
  • Brand / Model - Cair / Mod
  • Approvals     - Design (Tuv) / Iso 9001:2008 / Ce / Iec
  • Characteristic  - On - Off Type / Modulating Type
  • Travel Angle - 90 Degree
  • Indicator     - Continuous Position Indicator
  • Supply - 220v Ac , 50 Hz
  • Body Material - Aluminum Alloy
  • Ambient Temperatre = -10°c ~ 55°c
  • Motor Insulation - Class F
  • Protection Class  - Ip 67 – Weather Proof
  • Limit Switch - 1 No + 1 No Output Of 220v Ac
  • Position On Power Fail - Stay Put
  • Manual Override - Provided



Details

  • Size - 6”X8” / 8”X10” / 10”X12” / 12”X14”
  • MOC - WCB / CF8 / CF8M
  • Seals - PTFE / CFT/ GFT/TFM/ PEEK
  • Pressure - 150#
  • Temp = Upto 180°C / 250°C
  • Class - 150#
  • Ends - Flanged Type
